The Krieger Sevac Series is built for high reliability, long durability, and great cost savings. These single-stage vacuum pumps use a smart three-vane design to work at peak efficiency.
As the internal rotor spins, the three vanes divide the pump chamber into changing spaces. This continuous spinning changes the area inside the pump over and over again to complete the vacuum cycle: smoothly drawing air in, squeezing it together, and pushing it out into the exhaust.
Key Features & Benefits
- Equipped with oil mist filter, clean exhaust.
- Compact design and lightweight.
- Efficient air-cooling; easy to install; maintenance friendly.
- Inlet with check valve to prevent vacuum oil back into the system.
- Efficient and energy saving.
- Small vibration, low noise, long service life span.
| Model | Flow Rate 50Hz (m³/h) | Flow Rate 60Hz (m³/h) | Ultimate Vacuum (Pa) | Motor Power (kW) | Inlet Dia | Speed (rpm) | Oil Vol. (L) | Weight (kg) | Noise dB(A) | Cooling | Dimensions L×W×H (mm) |

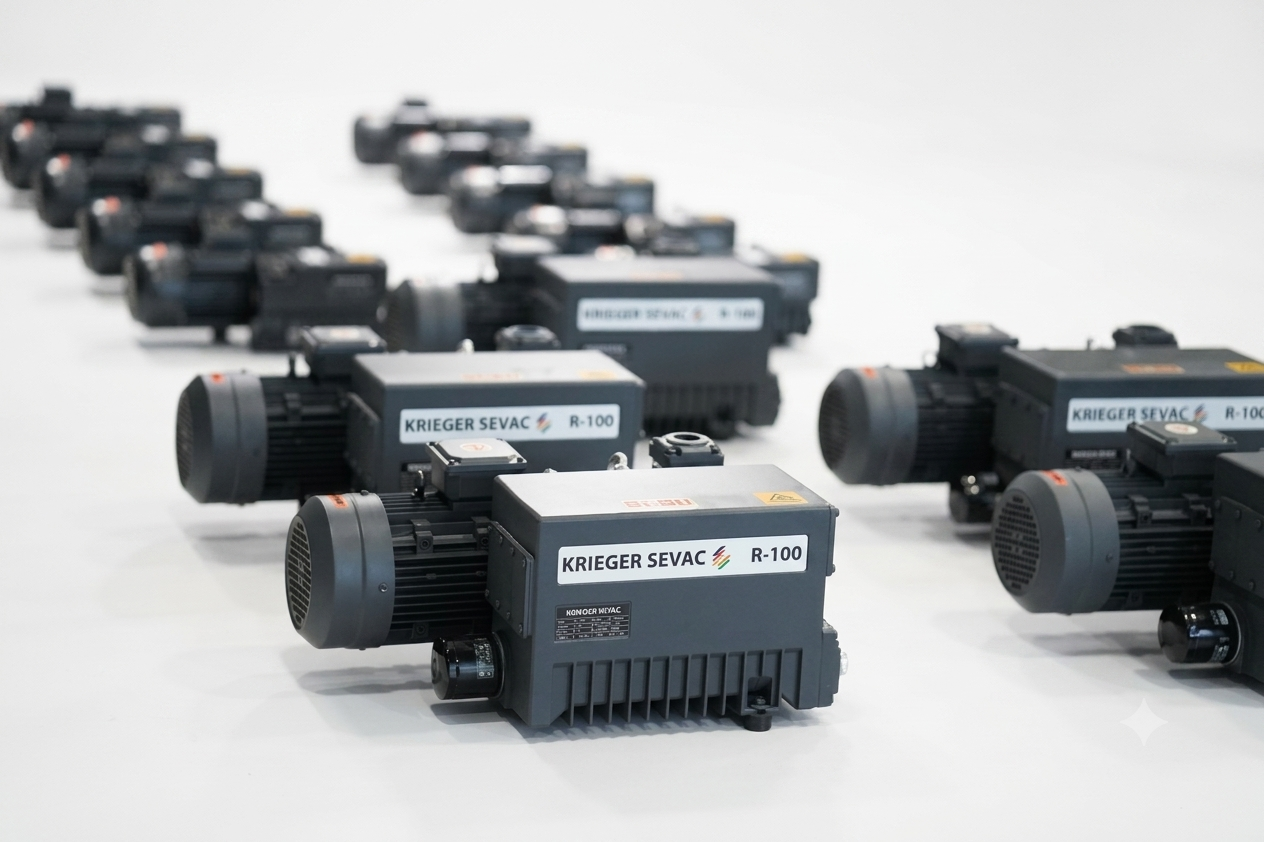

| R-100 | 100 | 120 | 50 | 3.0 | G 1-1/4" | 1440 | 1.0 | 82 | 72 | Air | 715 × 400 × 295 |
